mavonEditor

| Vue2 | | | —- | ———————————————————— | | Vue3 | |

A markdown editor based on Vue

中文说明

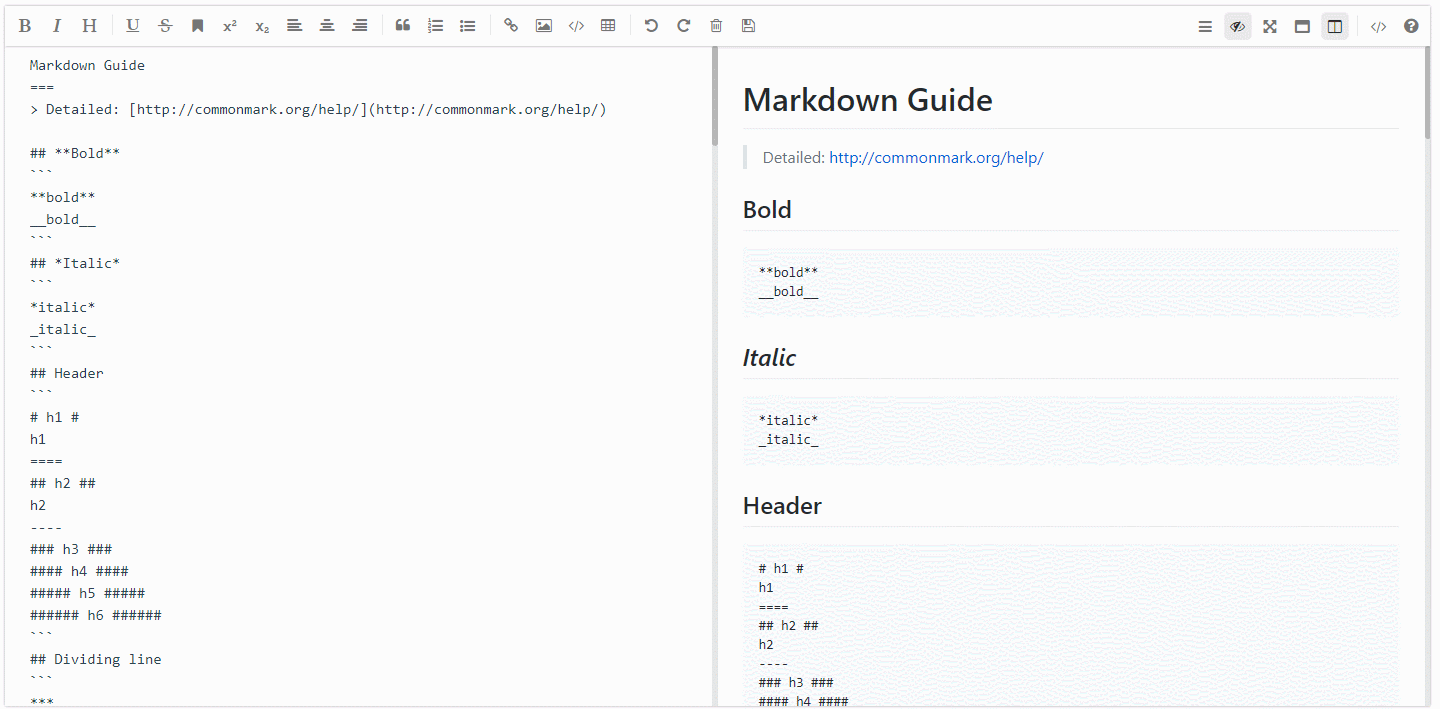

Example Pictures

PC

more images…

Use Setup

Install mavon-editor

$ npm install mavon-editor --save

Use

index.js:

    // Global Registration
    // import with ES6
    import Vue from 'vue'
    import mavonEditor from 'mavon-editor'
    import 'mavon-editor/dist/css/index.css'

    // use
    Vue.use(mavonEditor)
    new Vue({
        'el': '#main',
        data() {
            return { value: '' }
        }
    })

index.html

// The same below
<div id="main">
    <mavon-editor v-model="value"/>
</div>

Use in nuxt.js

new file: vue-mavon-editor.js ```javascrpt import Vue from ‘vue’; import mavonEditor from ‘mavon-editor’; import ‘mavon-editor/dist/css/index.css’;

Vue.use(mavonEditor);

> nuxt.config.js
```javascript
  plugins: [
  ...
    { src: '@/plugins/vue-mavon-editor', ssr: false }
  ],

page ```vue

> [more ways...](/mavonEditor/doc/en/use.html)

> [set markdown-it object...](/mavonEditor/doc/en/markdown.html)

## API

### props

| name    | type    |  default value | describe  |
| -------- | :---------: | :------------: | ------- |
| value      | String      |               | Initial value |
| language   | String      |      zh-CN         | Language switch,  zh-CN: Simplified Chinese, zh-TW: Traditional Chinese, en: English， fr: French, pt-BR: Brazilian Portuguese, ru: Russian, de: German, ja: Japanese |
| fontSize     | String  |     14px      | font-size of edit area  |
| scrollStyle| Boolean     |   true       | Open the scroll bar style(Temp only support chrome) |
| boxShadow     | Boolean  |     true     | css: box-shadow  of mavonEditor              |
| subfield   | Boolean     |   true        | true: Double columns - Edit preview same screen , Single Columns - otherwise not |
| defaultOpen | String |         |Default display area in single columns (subfield=false).<br/>  edit: default show edit area<br/>  preview: default show preview area<br/>  other = edit |
| placeholder | String |    Begin editing...     |  The default prompt text when the textarea is empty  |
| editable | Boolean     |   true       | Edit switch |
| codeStyle | String |    code-github     | markdown Style: default github, [option hljs color scheme](/mavonEditor/src/lib/core/hljs/lang.hljs.css.js)  |
| toolbarsFlag | Boolean     |   true       | Show toolbars |
| navigation | Boolean |    false    |  Show navigation  |
| shortCut | Boolean |    true    |  shortcut switch  |
| ishljs       | Boolean |     true     | highlight code switch |
| imageFilter | Function |     null     | Image file filter Function, params is a `File Object`, you should return `Boolean` about the test result |
| imageClick | function |     null     |  Image Click Function |
| tabSize | Number |     null     |  How many spaces equals one tab, default \t |
| html    | Boolean  |     true     |  Enable HTML tags in source, for historical reasons this tag has always been true by default, but it is recommended to turn it off if you don't need this feature, as doing so it eliminates the security vulnerabilities altogether. |
| xssOptions     | Object  |     {}     | xss rules configuration, enabled by default, set to false to turn off, enabled will filter HTML tags, the default filter all HTML tag attributes, it is recommended to configure the whitelist on demand to reduce the possibility of being attacked.<br/> - custom rule reference: [https://jsxss.com/zh/options.html](https://jsxss.com/zh/options.html)<br/>- Demo: [dev-demo](/mavonEditor/src/dev/editor.vue)                    |
| toolbars   | Object      |   As in the following example  | toolbars |

#### toolbars
The default toolbar properties are all true, You can customize the object to cover them.
```javascript
 /*
    eg: {
      bold: true,
      italic: true,
      header: true,
    }
    At this point, the toolbar only displays the three function keys.
 */

toolbars: {
    bold: true,
    italic: true,
    header: true,
    underline: true,
    strikethrough: true,
    mark: true,
    superscript: true,
    subscript: true,
    quote: true,
    ol: true,
    ul: true,
    link: true,
    imagelink: true,
    code: true,
    table: true,
    fullscreen: true,
    readmodel: true,
    htmlcode: true,
    help: true,
    /* 1.3.5 */
    undo: true,
    redo: true,
    trash: true,
    save: true,
    /* 1.4.2 */
    navigation: true,
    /* 2.1.8 */
    alignleft: true,
    aligncenter: true,
    alignright: true,
    /* 2.2.1 */
    subfield: true,
    preview: true
  }

If you need to customize and add toolbar buttons, you can do the following:

<mavon-editor>
  <!-- Add a custom button in front of the left toolbar -->
  <template slot="left-toolbar-before">
    <button
      type="button"
      @click="$click('test')"
      class="op-icon fa fa-mavon-align-left"
      aria-hidden="true"
      title="custom"
    ></button>
  </template>
  <!-- Add a custom button after the left toolbar  -->
  <template slot="left-toolbar-after">
    <button
      type="button"
      @click="$click('test')"
      class="op-icon fa fa-mavon-align-left"
      aria-hidden="true"
      title="custom"
    ></button>
  </template>
  <!-- Add a custom button in front of the right toolbar  -->
  <template slot="right-toolbar-before">
    <button
      type="button"
      @click="$click('test')"
      class="op-icon fa fa-mavon-align-left"
      aria-hidden="true"
      title="custom"
    ></button>
  </template>
  <!-- Add a custom button behind the right toolbar  -->
  <template slot="right-toolbar-after">
    <button
      type="button"
      @click="$click('test')"
      class="op-icon fa fa-mavon-align-left"
      aria-hidden="true"
      title="custom"
    ></button>
  </template>
</mavon-editor>

events

name	params	describe
change	String: value , String: reder	Edit area change callback event (render: Html source code)
save	String: value , String: reder	Ctrl+s and click save button
fullScreen	Boolean: status , String: value	Fullscreen editing toggle callback event(boolean: Fullscreen status)
readModel	Boolean: status , String: value	Reading mode toggle callback event(boolean: Reading mode status)
htmlCode	Boolean: status , String: value	Html code mode toggle callback event(boolean: status)
subfieldToggle	Boolean: status , String: value	Double columns edit mode toggle callback event(boolean: double columns status)
previewToggle	Boolean: status , String: value	Preview & Edit toggle callback event(boolean: preview status)
helpToggle	Boolean: status , String: value	Help-me toggle callback event(boolean: help status)
navigationToggle	Boolean: status , String: value	Navigation mode toggle callback event(boolean: nav status)
imgAdd	Number: pos, File: imgfile	Add image file callback event(pos: position in the list of images, File: File Object)
imgDel	Array(2):[Number: pos,File:imgfile ]	Delete image file callback event(Array(2): An array of length 2,the first is pos: position in the list of images, the second is file: File Object)

Hightlight

If you do not need code highlighting, you need set ishljs to false

Set ishljs = true

    <!-- default value is true -->
    <mavon-editor :ishljs="true"></mavon-editor>

For optimize the size of pack, since v2.4.2, the following files will default to using cdnjs outside the chain:

• highlight.js
• github-markdown-css
• katex(v2.4.7)

The language parsing files and code highlighting in Code Highlighting highlight.js will be loaded on demand. github-markdown-css and katex will load only when mounted.

Notice: Option hljs color scheme and Supported language is export from highlight.js/9.12.0

without cdn, Click here to local on-demand loading…

Upload images

<template>
    <mavon-editor ref=md @imgAdd="$imgAdd" @imgDel="$imgDel"></mavon-editor>
</template>
<script>
exports default {
    methods: {
        // bind @imgAdd event
        $imgAdd(pos, $file){
            // step 1. upload image to server.
           var formdata = new FormData();
           formdata.append('image', $file);
           axios({
               url: 'server url',
               method: 'post',
               data: formdata,
               headers: { 'Content-Type': 'multipart/form-data' },
           }).then((url) => {
               // step 2. replace url ![...](0) -> ![...](url)
               $vm.$img2Url(pos, url);
           })
        }
    }
}
</script>

more info about upload images …

Note

• Default size: min-height: 300px , min-width: 300px , Can be covered
• z-index: 1500
• Just for show html of md: toolbarsFlag: false , subfield: false, defaultOpen: “preview”

keyboard shortcuts

key	keycode	fun
F8	119	toggle navigation
F9	120	toggle [edit/preview]
F10	121	toggle fullscreen
F11	122	toggle readModel
F12	123	toggle [double columns / single column]
TAB	9	\t
CTRL + S	17 + 83	@save
CTRL + D	17 + 68	remove selected lines
CTRL + Z	17 + 90	prev step
CTRL + Y	17 + 89	next step
CTRL + BreakSpace	17 + 8	trash
CTRL + B	17 + 66	**Bold**
CTRL + I	17 + 73	*Italic*
CTRL + H	17 + 72	# Header
CTRL + U	17 + 85	++Underline++
CTRL + M	17 + 77	==Mark==
CTRL + Q	17 + 81	> Quote
CTRL + O	17 + 79	1. OL
CTRL + L	17 + 76	[Link title](Link url)
CTRL + ALT + S	17 + 18 + 83	^Superscript^
CTRL + ALT + U	17 + 18 + 85	- UL
CTRL + ALT + C	17 + 18 + 67	``` Code block
CTRL + ALT + L	17 + 18 + 76
CTRL + ALT + T	17 + 18 + 84	Table
CTRL + SHIFT + S	17 + 16 + 83	~Subscript~
CTRL + SHIFT + D	17 + 16 + 68	~~Strikethrough~~
CTRL + SHIFT + C	17 + 16 + 67	align center
CTRL + SHIFT + L	17 + 16 + 76	align left
CTRL + SHIFT + R	17 + 16 + 82	align right
SHIFT + TAB	16 + 9	remove \t

Dependencies

• markdown-it

• auto-textarea

Syntax extensions

• emoji
• subscript
• superscript
• container
• definition list
• abbreviation
• footnote
• insert
• mark
• todo list
• highlight
• katex
• images preview
• toc

  可通过获取markdown-it对象引入其他语法插件

Collaborators

• CHENXCHEN
• ygj6
• yukaige

License

mavonEditor is open source and released under the MIT License.

Copyright (c) 2017 hinesboy
